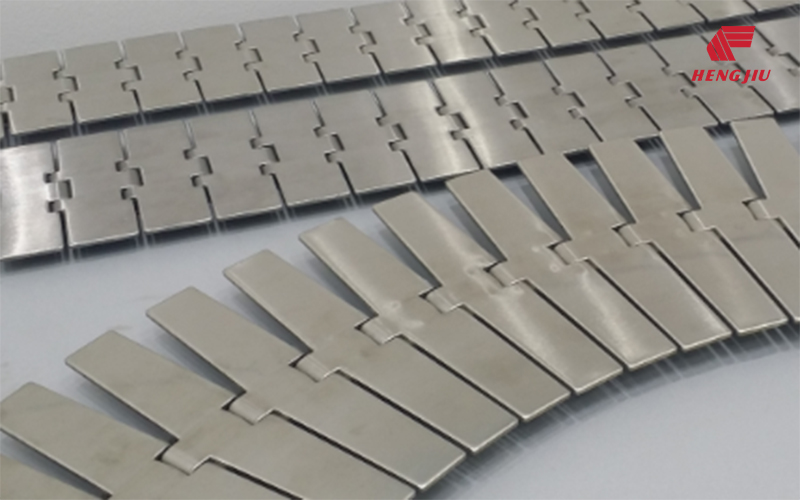

Die Scharnierbandkette aus Edelstahl

Die Tochterfirma Huangshan Chain der Hengjiu Group entwickelt und vertreibt seit 1980 Edelstahl Scharnierbandkette. Ihre Produktlinie ist um Kunststoffketten, Kettennetze, Kettenräder und zugehöriges Zubehör erweitert. Dank des Vertrauens und der Unterstützung unserer Kunden haben wir nach 40 Jahren Forschung und Praxis einige Ergebnisse erzielt. Das Unternehmen verfügt über führende Herstellungstechnologie und Ausrüstung in China. Sie ist auch der Hauptbeiträger zur nationalen Normen GB/T4140 Scharnierbandkette und Kettenrad für Förderungsanlangen.

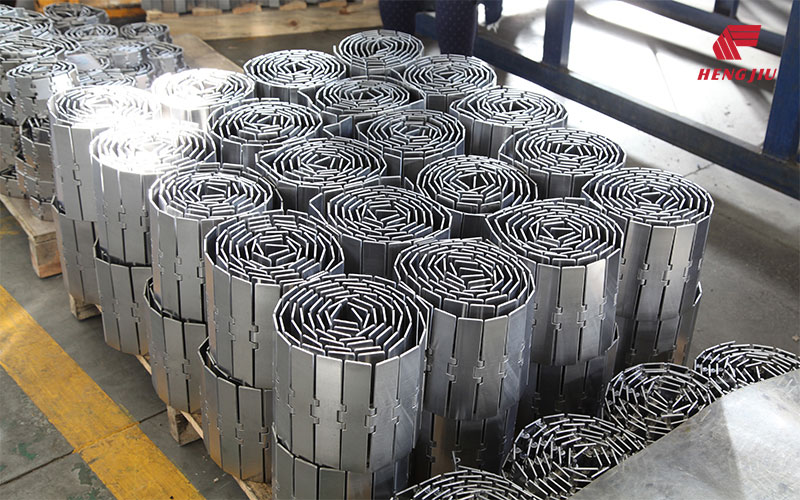

Das Testzentrum des Unternehmens ist mit zahlreichen Prüfgeräten wie Spektrumanalysator,  Härteprüfgerät von Brinell, Mikrohärteprüfgerät von Vickers, metallografischen Mikroskop, Oberflächenrauheitsprüfgerät,  Salzsprühtester, Ermüdungsprüfgerät, Schlagprüfgerät usw. , ausgestattet. Sie verfügt über Inspektions- und Testkapazität für Edelstahl Scharnierbandketten und entwickelt einer Reihe spezieller Geräte mit vollständigen IP. Die Produktportfolio ist umfangreich und die monatliche Produktionskapazität hat 1,5 Millionen Stück überschritten.

There are more than 60 specifications of stainless steel flat-top chain, and its selection should be determined according to the working conditions of the conveyor. The factors involved should include, but not limited to, such as the characteristics of the goods, the requirements of the goods to the environment, the loading capacity, the speed of the chain, the friction coefficient between the chain and the guide rail, the center distance between the driver and driven wheels, lubrication conditions, temperature, etc. Under good lubrication conditions, the transmission line speed of flat top chain can reach 120 m/min.


The technical performance of stainless steel flat top chain mainly depends on its raw materials and technological level of manufacturing process. Different metal materials' characteristics determine the applicable environment and working conditions of flat-top chain products. At present, there are four kinds of chain chain materials for choices: AISI 420, AISI 430, AISI 304 and Special Chromium-nickel Steel. Pin materials are AISI 420, AISI 431 and AISI 304. Among them, AISI 420 chain chain with AISI 420 pin, AISI 430 and Special Chromium-nickel Steel with AISI 431 pin, AISI 304 chain chain with AISI 431 or AISI 304 pinare five assembly methods based on material matching.


Chain and Pin materials Matching Table

Chain Materials AISI 420 AISI 430
AISI 304 AISI 304 Special Chromium-nickel Steel
Pin Materials AISI 420 AISI 431 AISI 431 AISI 304 AISI 431

Chain Strength


Based on the reliable operation of the open-loop structure chain chain with flat-top chain and the failure elongation not greater than 3% of the nominal length of the chain, its strength should be defined as the actual yield strength of the chain.

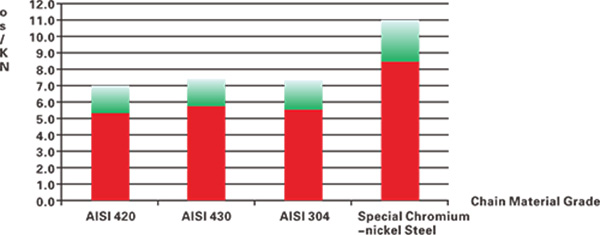

Taking 38.1*82.6 single-hinged flat-top chains as an example, the yield strength (green zone) of chains with different materials is shown in the following chart.

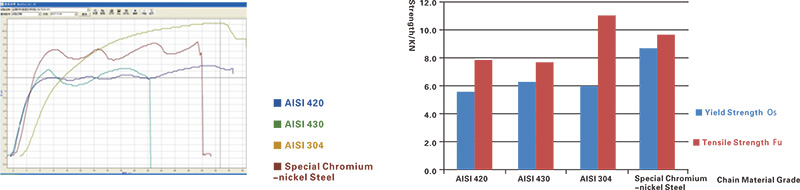

The following chart shows the test data of 38.1*82.6 single-hinged flat-top chains produced in March 2017 on 300 Tons universal material testing machine.


Wear Resistance of Chains
The wear resistance of the chain mainly depends on the surface hardness and roughness of the chain chain.

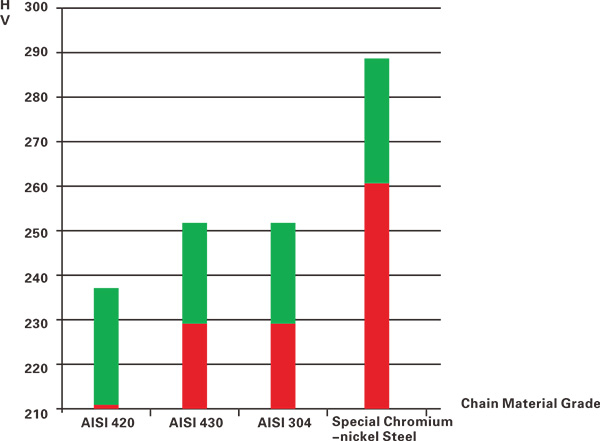

The surface hardness range (green zone) of chain incha with different materials is shown in the following chart.



Surface roughness of chains
The surface smoothness of the chain chain is usually determined by the Ra value of the arithmetic mean deviation of the contour.

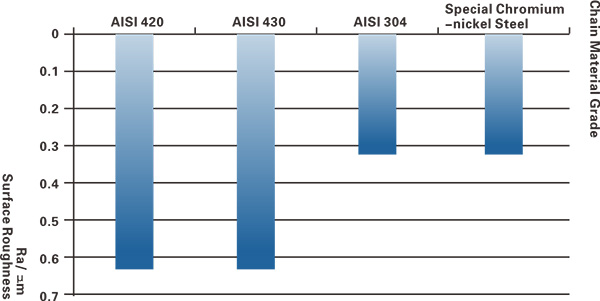

The maximum surface roughness of chain incha with different materials is as follows.




Stability of Chain Performance

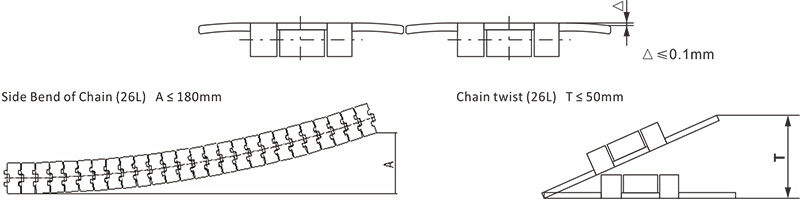

For the chain itself, the shape and smoothness of the surface of the chain chain, the side bending and twisting of the chain, and the gap between the chain chain and the pin shaft are related to many factors.

Taking 38.1*82.6 single-hinged flat-top chain as an example, this paper expounds the control of this quality index in the factory.

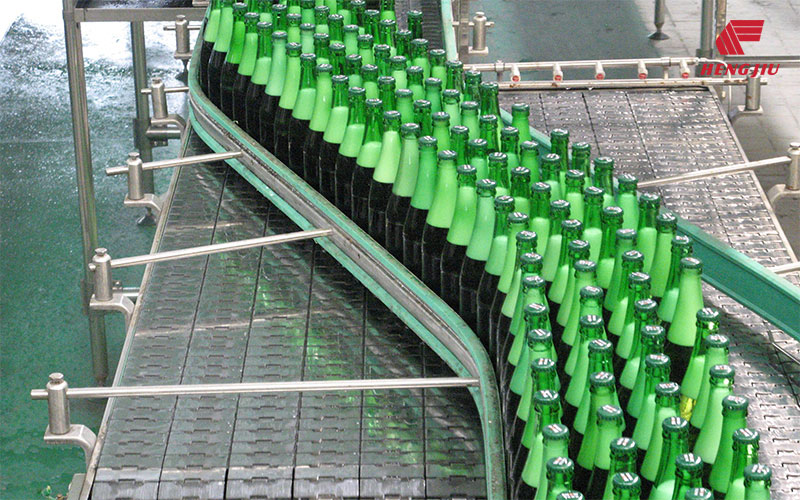

The shape of the chain chain is suitable for the transverse movement of objects between multiple chains.





Corrosion Resistance of Chains

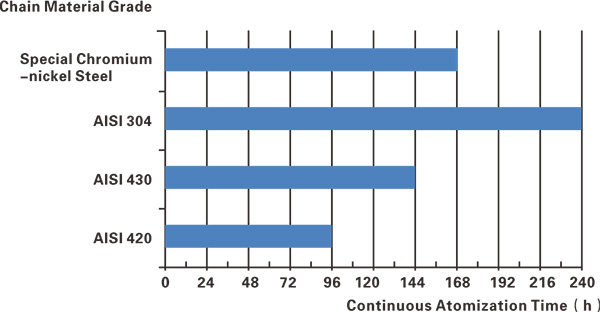

The test of JW-60-SS salt spray test machine is consistent with the neutral salt spray test conditions of GB/T 10125 "artificial atmosphere corrosion test salt spray test" standard. The continuous atomization time of the pitting phenomenon for the first time of chain incha of different materials is as follows: Chart: NSS
